Normalize etas by their omega- or empirical-SD-implied scale

Sets xpdb$normalize_etas, a top-level slot (alongside eg $covs, see add_cov_association()) consumed by eta_grid()/ eta_vs_cov_grid()/eta_vs_contcov()/eta_vs_catcov(): each selected eta is divided by its typical scale – by default the standard deviation implied by its associated diagonal omega estimate (sqrt(omega)), same as recalc_shk() uses – before being plotted, so etas modeled on very different scales (eg a normally-distributed eta next to a log-normal one with a much larger omega) can be compared on one shared plot without the larger-scale eta dominating.

normalise_etas() is an alias, for the British/rest-of-world spelling.

Usage

normalize_etas(
  xpdb,
  ...,
  .use_sd = FALSE,
  .problem = NULL,
  .subprob = NULL,
  .method = NULL,
  quiet
)

normalise_etas(
  xpdb,
  ...,
  .use_sd = FALSE,
  .problem = NULL,
  .subprob = NULL,
  .method = NULL,
  quiet
)

Arguments

xpdb

<xpose_dataxpose::xpose_data> or xp_xtras object

...

<tidyselect> Which eta column(s) to (re)compute a normalization factor for. Defaults to every eta column for .problem.

.use_sd

<logical> If TRUE, normalize by the empirical standard deviation of each eta's individual estimates instead of the omega-implied one; see Details. Defaults to FALSE.

.problem

<numeric> Problem number to use. Uses the xpose default if not provided.

.subprob

<numeric> Subproblem number to use. Uses the xpose default if not provided.

.method

<character> Method to use. Uses the xpose default if not provided.

quiet

<logical> Silence extra debugging output

Value

xp_xtras object, with the computed factors set under $normalize_etas (not $options – see Details)

Details

This only ever affects how those four plotting functions display etas – it never modifies xpdb$data, so get_data() and every other consumer of the eta columns keep seeing the raw (unnormalized) values.

$normalize_etas is a plain top-level slot rather than an xpdb$options entry – unlike most options, its value is one number per eta rather than a single setting, and folding a handful of high-precision numbers per eta into print.xpose_data()'s single-line Options: summary made that summary unreadable for models with more than a couple of etas.

The default (omega-based) scale relies on the same internal name/numbering match between eta columns and diagonal omega estimates (see recalc_shk()'s Details for when that can fail, eg unconventional eta naming that isn't a nlmixr2-style direct match to a parameter table name and also doesn't follow NONMEM's ETA<k>/ETA(k) numbering). When that match fails, or there simply is no reliable omega for these etas (eg a hand-built or simulated xpdb), .use_sd = TRUE sidesteps it entirely, scaling by the empirical standard deviation of each eta's own individual estimates instead – at the cost of that scale itself being sample-dependent (and shrinkage- deflated) rather than reflecting the model's estimated random-effect variance.

Calling normalize_etas() again merges into (rather than replacing) any previously-set factors, via utils::modifyList() – so ... can be used to (re)compute just a subset of etas, eg after refitting. To turn normalization off again, assign directly: xpdb$normalize_etas$ETA1 <- NULL for a single eta, or xpdb$normalize_etas <- NULL for all of them.

See also

recalc_shk(), which uses the same omega-matching logic

Examples

xpdb_norm <- normalize_etas(xpdb_x)

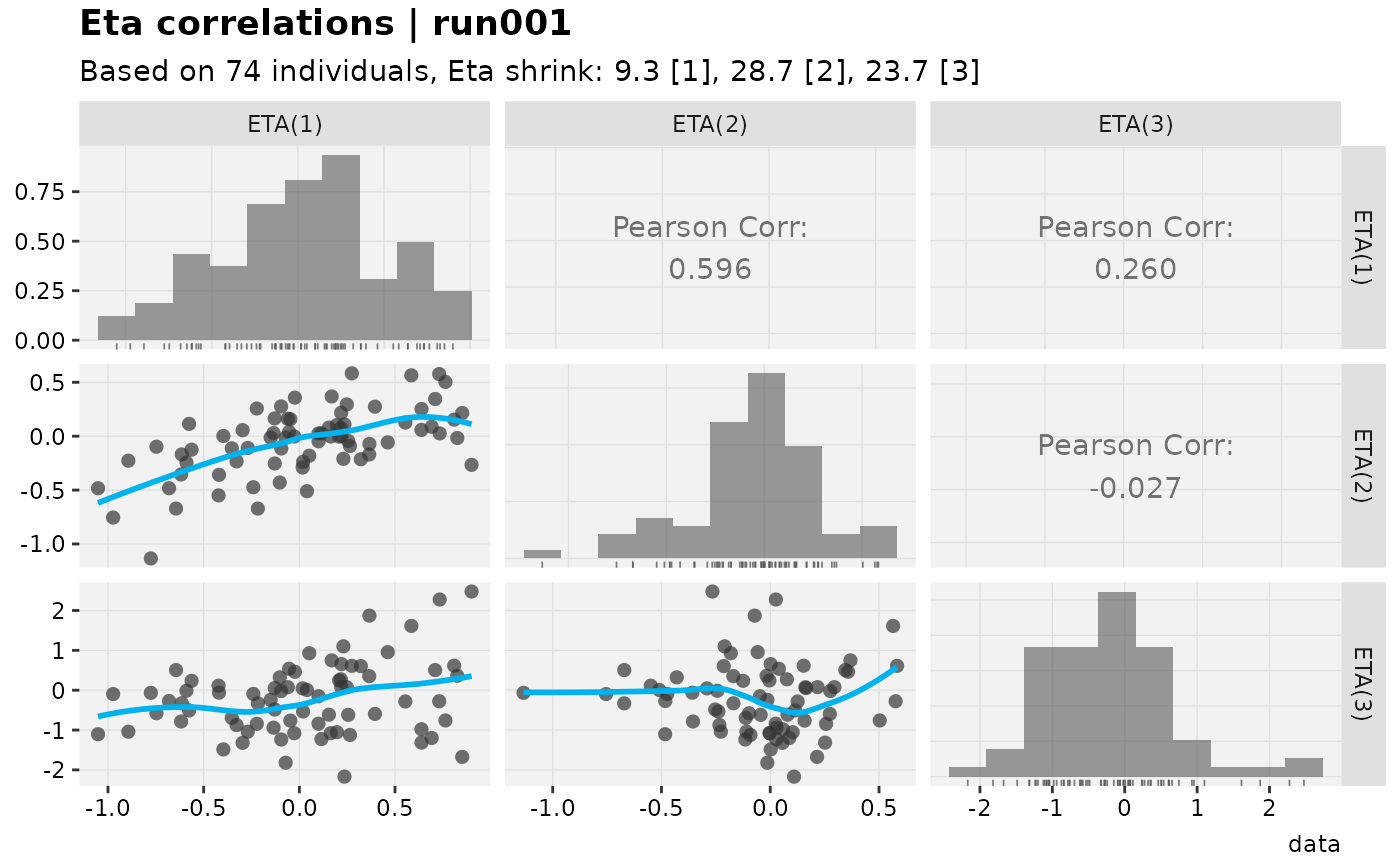

eta_grid(xpdb_norm)
#> Using data from $prob no.1
#> Removing duplicated rows based on: ID
#> Using data from $prob no.1
#> Removing duplicated rows based on: ID
#> Using data from $prob no.1
#> Removing duplicated rows based on: ID
#> Using data from $prob no.1
#> Removing duplicated rows based on: ID
#> Using data from $prob no.1
#> Removing duplicated rows based on: ID
#> Using data from $prob no.1
#> Removing duplicated rows based on: ID
#> Using data from $prob no.1
#> Removing duplicated rows based on: ID


# Just a subset of etas...
normalize_etas(xpdb_x, ETA1)
#>
#> ── ~ xp_xtras object
#> Model description: NONMEM PK example for xpose
#> run001.lst overview:
#>  - Software: nonmem 7.3.0
#>  - Attached files (memory usage 1.6 Mb):
#>    + obs tabs: $prob no.1: catab001.csv, cotab001, patab001, sdtab001
#>    + sim tabs: $prob no.2: simtab001.zip
#>    + output files: run001.cor, run001.cov, run001.ext, run001.grd, run001.phi, run001.shk
#>    + special: <none>
#>  - gg_theme: theme_readable
#>  - xp_theme: xp_xtra_theme new_x$xp_theme
#>  - Options: dir = data, quiet = FALSE, manual_import = NULL, cvtype = exact

# By empirical SD instead, eg if the omega match fails or is unreliable
normalize_etas(xpdb_x, .use_sd = TRUE)
#>
#> ── ~ xp_xtras object
#> Model description: NONMEM PK example for xpose
#> run001.lst overview:
#>  - Software: nonmem 7.3.0
#>  - Attached files (memory usage 1.6 Mb):
#>    + obs tabs: $prob no.1: catab001.csv, cotab001, patab001, sdtab001
#>    + sim tabs: $prob no.2: simtab001.zip
#>    + output files: run001.cor, run001.cov, run001.ext, run001.grd, run001.phi, run001.shk
#>    + special: <none>
#>  - gg_theme: theme_readable
#>  - xp_theme: xp_xtra_theme new_x$xp_theme
#>  - Options: dir = data, quiet = FALSE, manual_import = NULL, cvtype = exact
